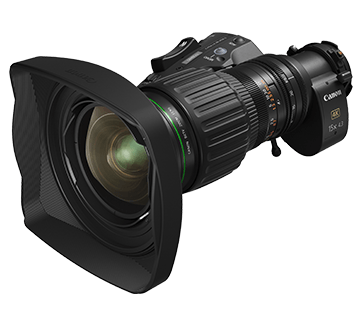

4K broadcast cameras with class-leading wide-angle focal length of 4.3mm and maximum zoom of 15x

Delivering high optical performance characteristic of the UHDxs series, the CJ15ex4.3B realizes a class-leading widest focal length of 4.3 mm and highest zoom ratio of 15x, making it ideal for producing high-quality, immersive video in a wide variety of scenarios including sports broadcasting and studio programming.

  • Compatible with 2/3” sensor 4K cameras
  • Focal length 4.3 – 65mm (130mm with 2.0x extender)
  • 15x zoom, 0.3m MOD
  • High-performance digital drive unit
  • Compact, mobile design; weighs approximately 2.19kg
Built-in extender1.0x2.0x
Focal Length4.3 – 65mm8.6 – 130mm
Zoom Ratio15x
Maximum Relative Aperture1:1.8 at 4.3 – 40mm
1:2.9 at 65mm		1:3.6 at 8.6 – 80mm
1:5.8 at 130mm
Angular Field of View96.3° × 64.2° at 4.3mm
8.4° × 4.8° at 65mm		58.3° × 34.9° at 8.6mm
4.2° × 2.4° at 130mm
Minimum Object Distance
(M.O.D.)		0.30m (10mm with Macro)
Object Dimensions at M.O.D.76.1 × 42.8cm at 4.3mm
4.9 × 2.8cm at 65mm		38.1 × 21.4cm at 8.6mm
2.5 × 1.4cm at 130mm
Approx. Size
(W x H x L)		163.0 × 107.6 × 249.6mm
Approx. Weight2.19kg (IASE S)
